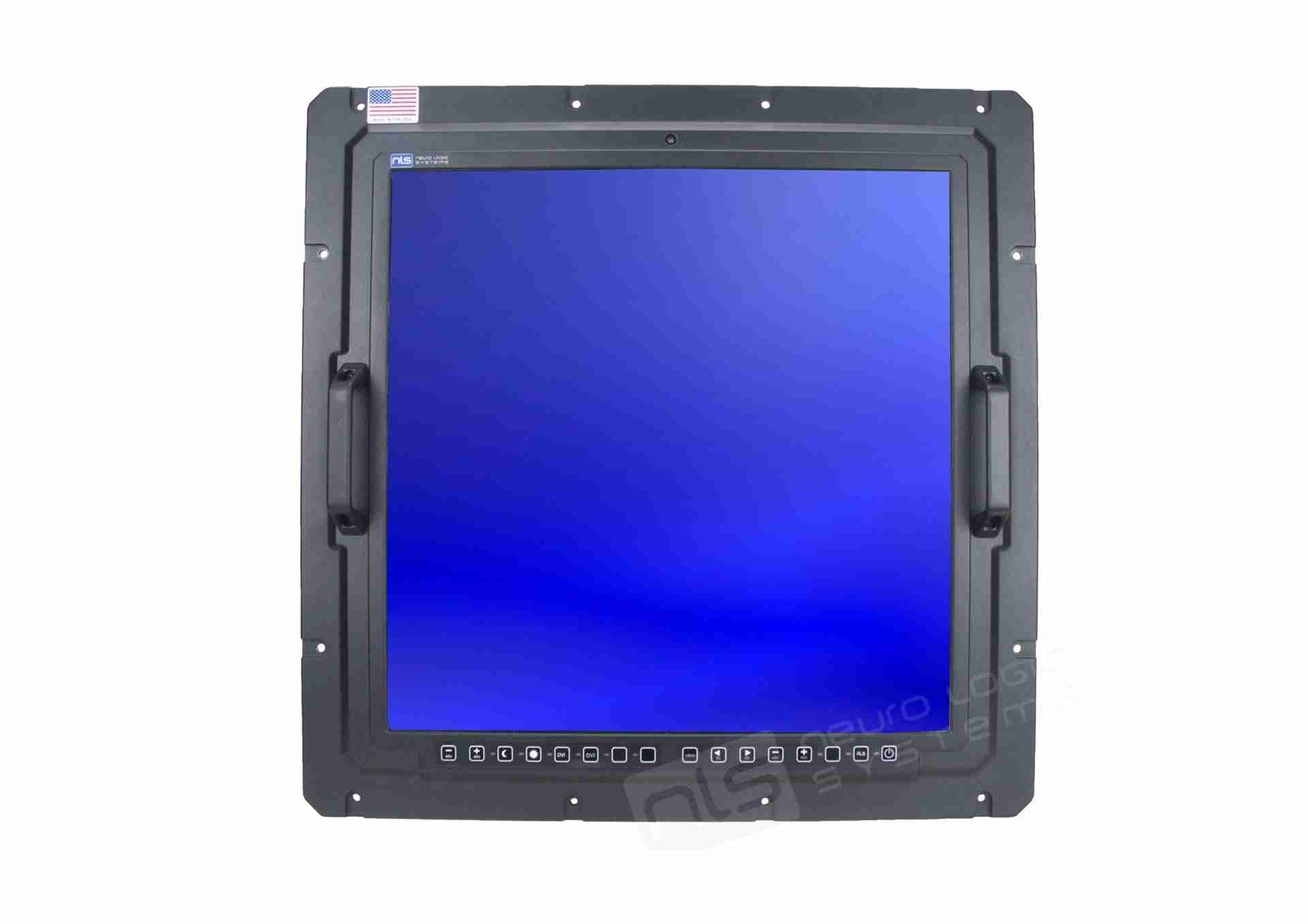

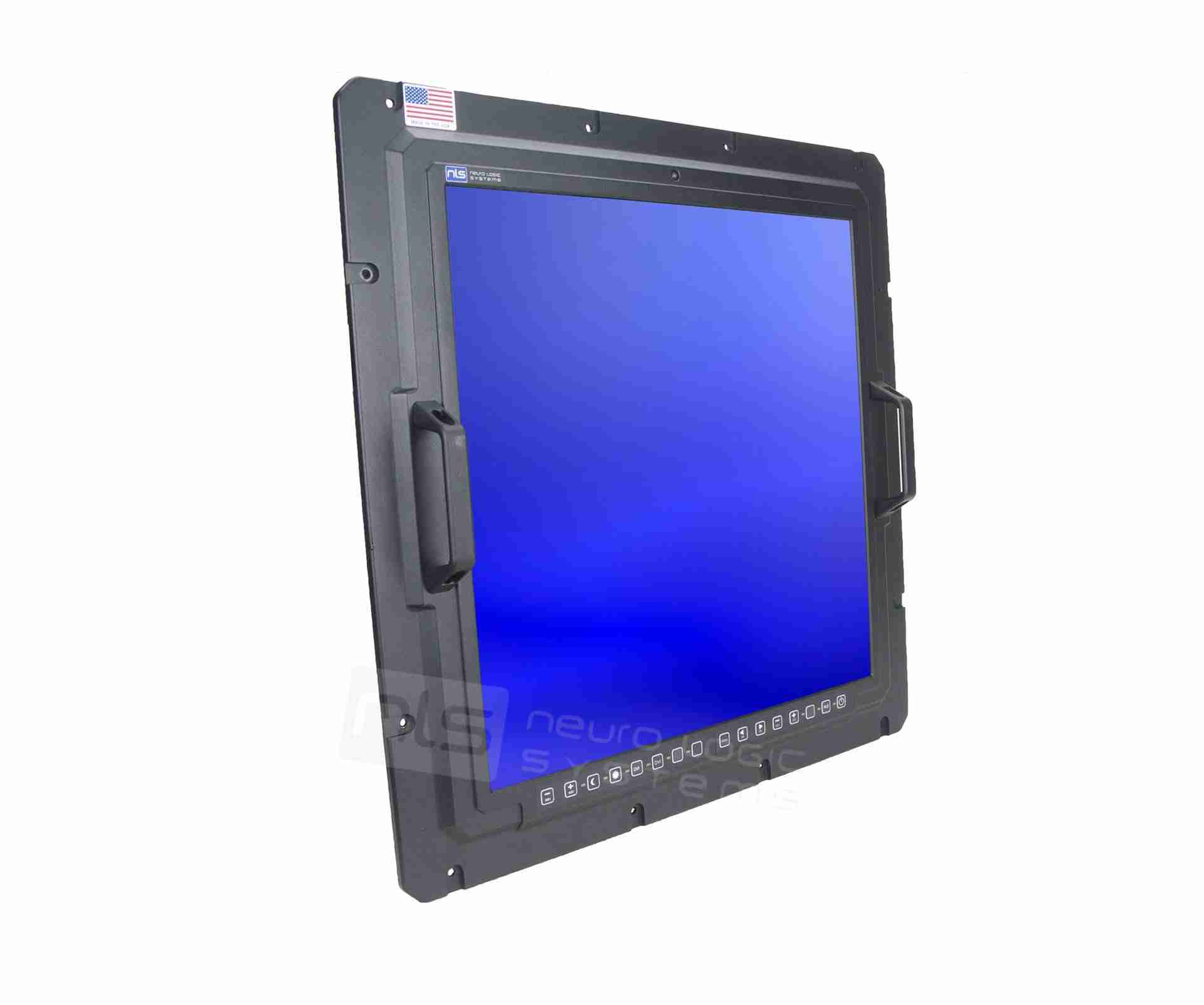

27” 1920×1920 Square Panel Mount Display for Navy Ships
The CF-27SQ is a 27” highly rugged display engineered for deployment on naval ships requiring MIL-STD-901D shock compliance. It is a physical drop-in replacement for outdated 28″ legacy units, providing improved performance at a significant cost savings. The CF-27SQ features a unique 27” LCD panel with 1920×1920 Square pixel resolution making it ideal for viewing shipboard Radar, Sonar and general Air Traffic Control information.

The machined aluminum alloy bezel, together with a gasket-sealed, optically bonded tempered front glass AR shield provides environmental sealing to IP65 while protecting the LCD panel from impact shock. A 16 button control array offers instant access to video input selection and image adjustments.

• 27” Square LCD with 1920×1920 Pixel Resolution
• Dual DVI and Display Port Video Inputs
• Rugged Machined Aluminum Alloy Construction
• Sealed to IP65 on Console Level
• Designed and Built to Military Standards by Similarity to Certified Units
• Tested to MIL-STD-901D
