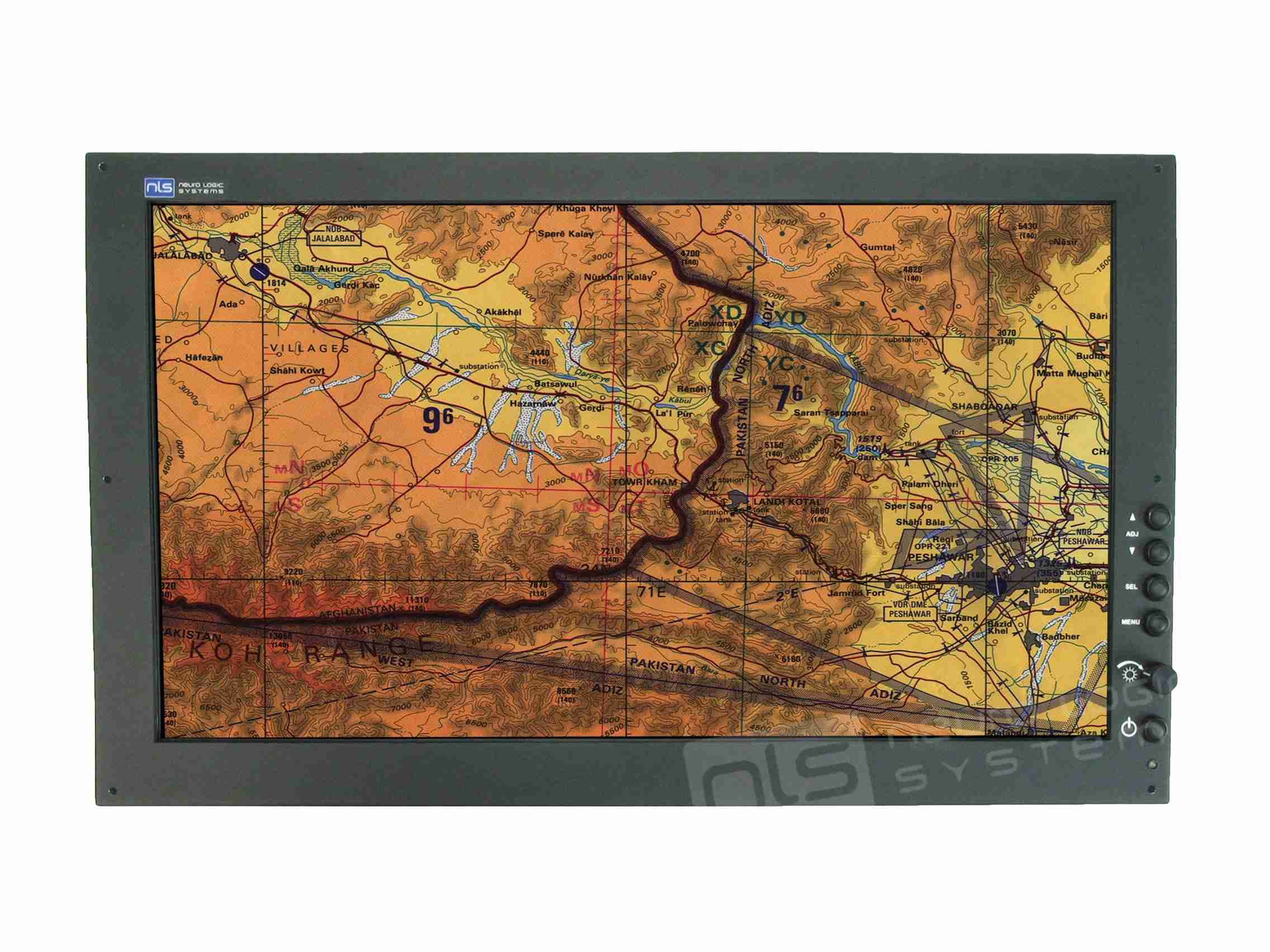

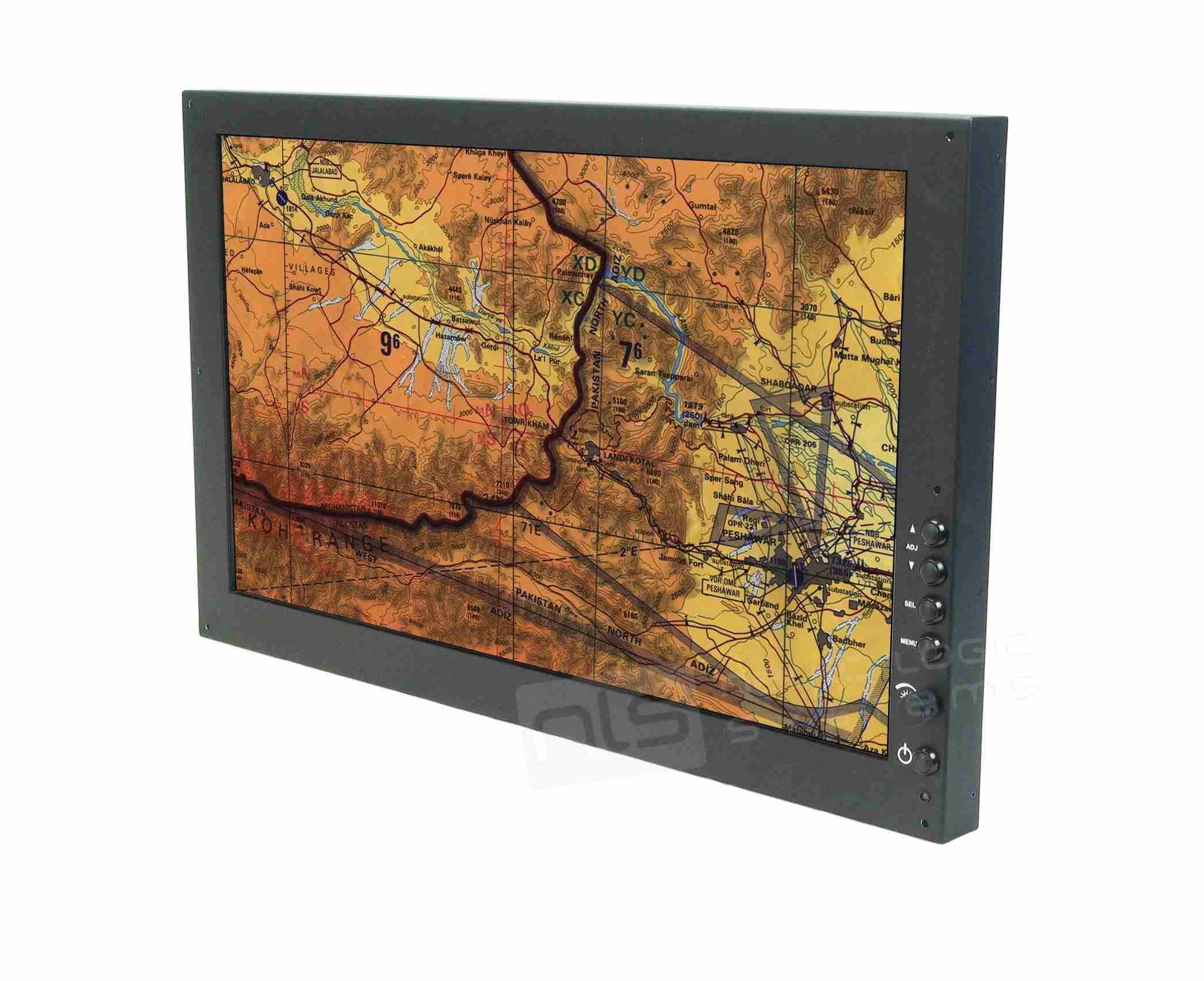

PM-27-MT

27” 2560×1440 Military Display with 6-Point Optical Multi-Touch
The PM-27-MT is our lower cost version of our Joint STARS RF-27 model. It has the same hi-resolution LCD and video performance in a semi-rugged enclosure designed for operation in environmental conditions where a more expensive certified mil-hardened display is not required.

The 27” LCD panel with 2560 x 1440 WQHD pixel resolution and advanced LED backlight system features 1000:1 dimming over two ranges with adjustment below 0.5 cd/m².

The PM-27-MT is designed for installation as a conventional panel mount but can be mounted in 19” and 24” EIA equipment racks using an optional adapter. A 100mm VESA mounting pattern is provided on the back for mounting on a pole or desktop stand.

A number of options are offered to satisfy a wide range of mission requirements including Hi-Brite backlight enhancement for direct sunlight readability.

• 2560×1440 IPS WQHD LCD Panel with a symmetrical 180-degree viewing cone
• Support for VGA, DVI, HDMI, DP Composite and 3G-SDI video with Picture-in-Picture
• Optical Multi-Touch Touchscreen with 6, 10 or 30 MT points
• Adapts to 19” EIA Equipment Rack
• AC or DC power supply
• Low Cost Design suited for Shelter and Console Applications
