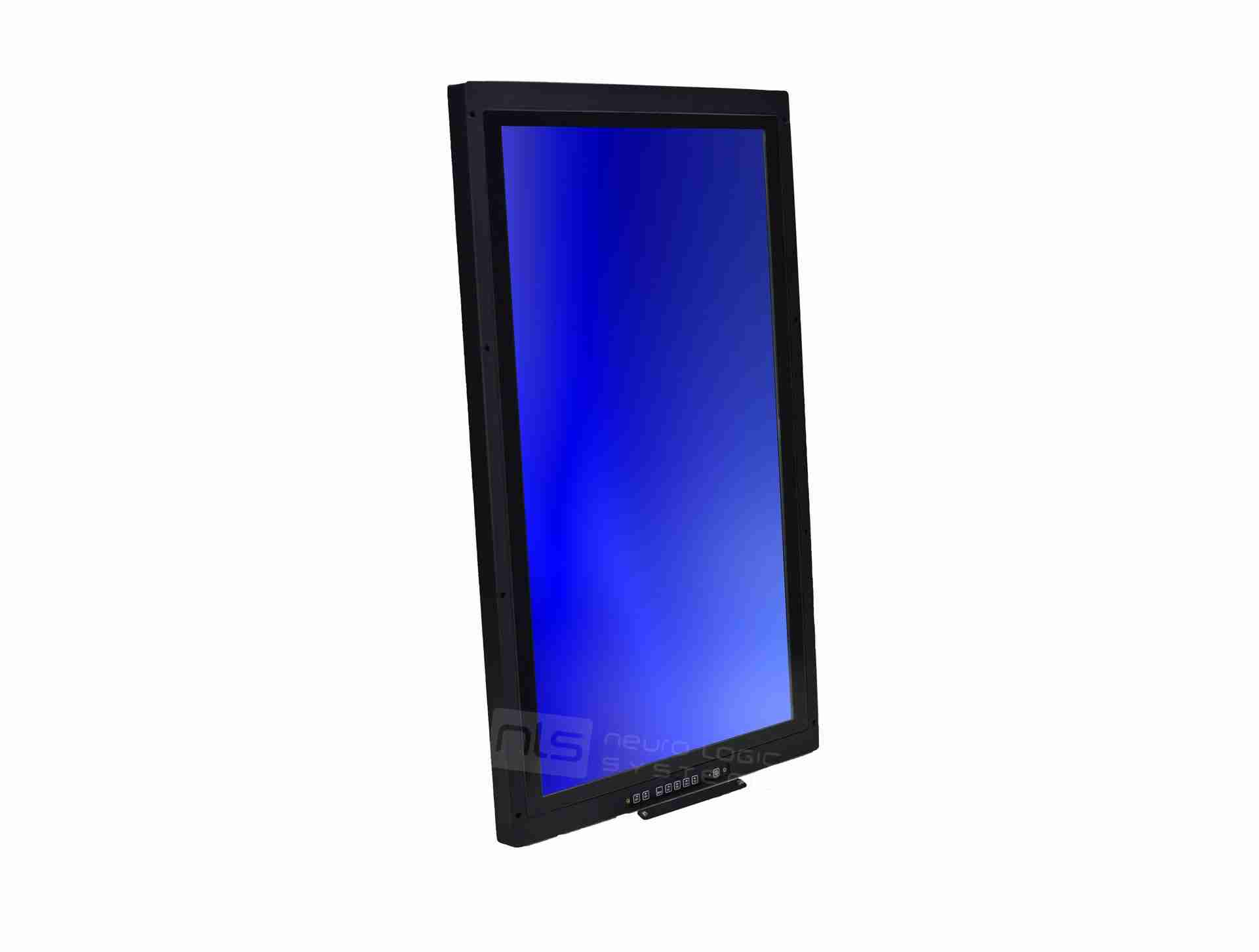

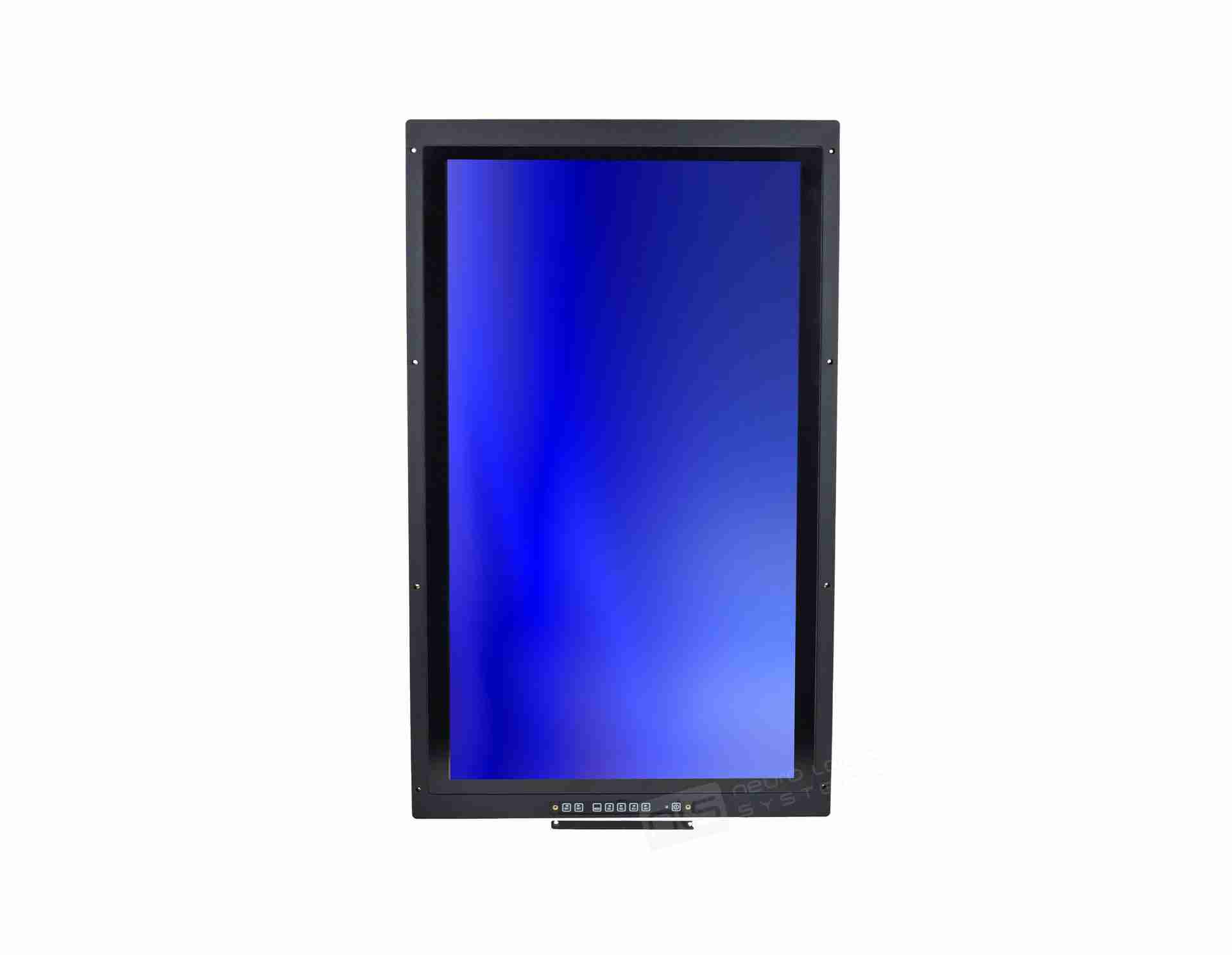

32” 3840×2160 Rackmount Shelter Display with PCAP Touchscreen
The PM-32-4K-PCAP is designed for military Ground Control, ISR and similar applications in sheltered environments. The 4K LCD with 3840×2160 UHD resolution and advanced video control electronics supports VGA, HDMI and Display Port inputs. Structural strength at minimum weight is achieved using an aluminum alloy chassis together with a hi-impact structural composite bezel.

The rugged 10-point multi-touch PCAP touchscreen is flush mounted tablet-style into the bezel to minimize the bezel profile and optimize visual and touch gesture ergonomics and communicates with the host computer via USB. The thin profile composite/aluminum housing is designed to permit installation in a standard 19” ANSI/EIA equipment rack.

With the included adapter bracket the PM-32-4K-PCAP can easily be installed on walls, consoles and other flat surfaces with a profile of only 2.6”. A VESA pattern on the rear further extends the mounting options to include poles, arms and other adapter configurations. The user OSD control panel is recessed in the front bezel and protected by a flush, removable cover.

• 32” 4K LCD with 3840×2160 UHD resolution
• Largest 19” Rack-mount Display Available
• 1x VGA, 1X DP, 4X HDMI video inputs with Picture-in-Picture
• 10-point Multi-Touch PCAP touchscreen
• Compatible with Windows 7/8/10, and Ubuntu, Red Hat and CentOS Linux Compatible
• 95-264VAC, 50-400Hz Power
• Optional MIL Certification Available
