Discontinued, please see replacement RF-21.3-R-PIP-28

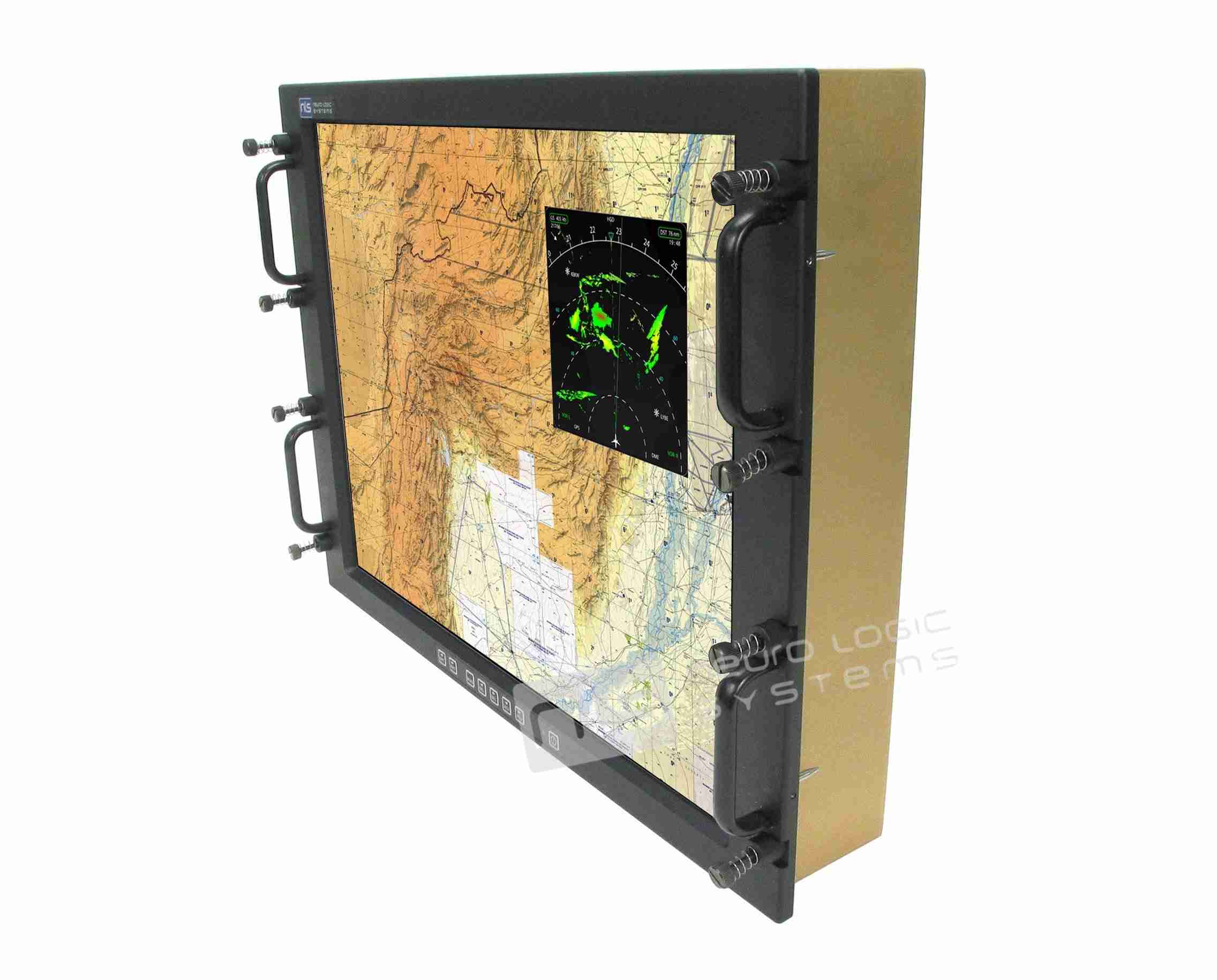

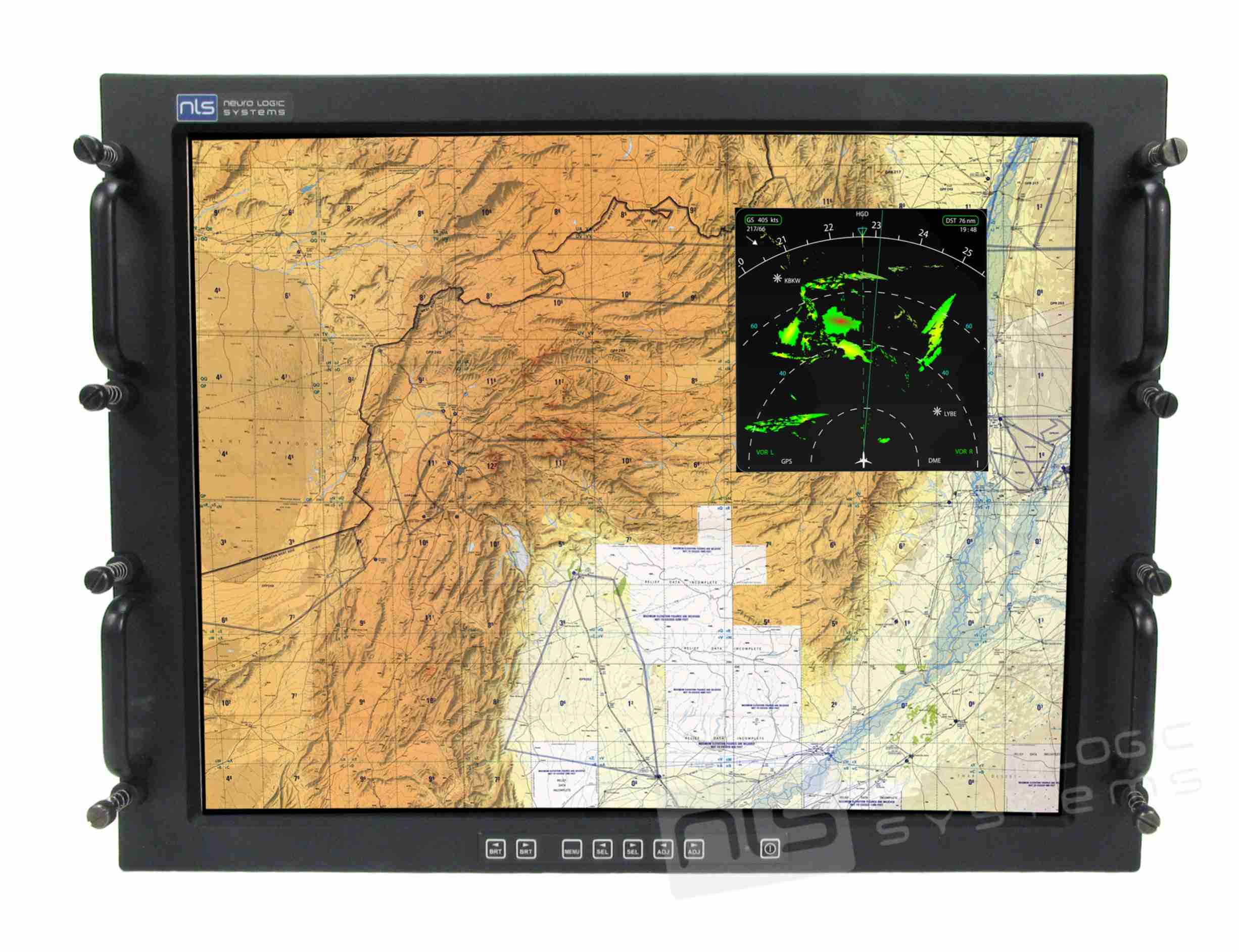

RF-20-400-PIP

20.1” 8U Flight Certified Rackmount Military Display
The RF-20-400-PIP employs a 20.1” active matrix LCD panel with 1600×1200 UXGA pixel resolution and 4:3 aspect ratio. The proprietary LED backlight control system permits dimming down to below 1 cd/m2 providing NVG compliance for most applications. The sophisticated LCD controller features extensive Picture-in-Picture adjustment for window size, position and transparency.

• Advanced 20.1” UXGA LCD with LED backlighting
• 115VAC-400Hz Power
• Analog RGB, DVI and Composite Video Input standard
• Extensive PIP Adjustments for Size, Position and Transparency
• RS232 Remote Control
• 0C to +55C Operating Temp and -40C to +85C Storage Temp.
• Flight Certified for Military Wing Aircraft
• Deployed on P3-Orion Aircraft
