NLS display Air Traffic Control monitors
Discontinued, see replacement CF-27SQ-MT-SPKR

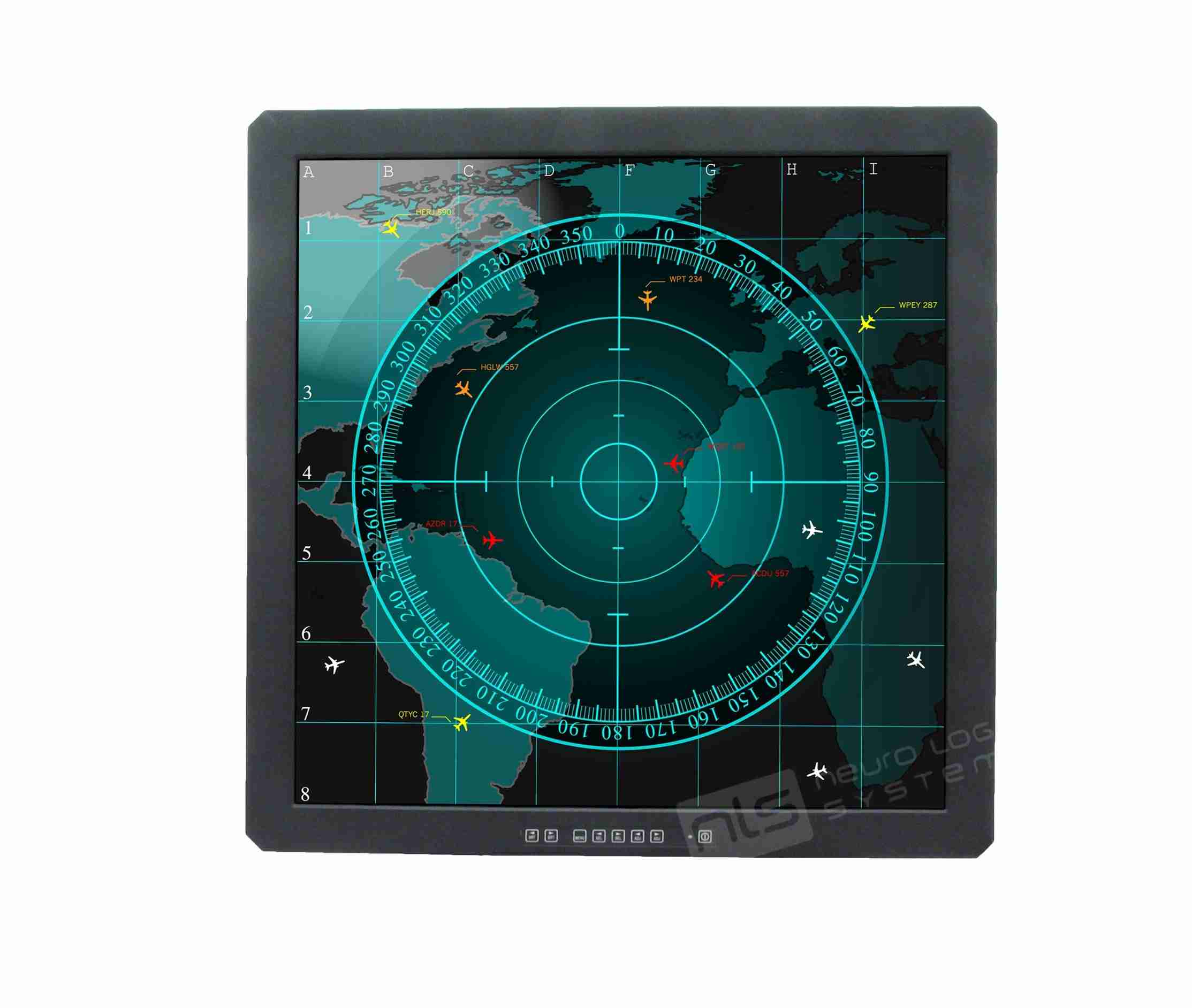

CF-27SQ-MT
The CF-27SQ-MT offers the best price/performance of any large format square display available. Developed originally for Air Traffic Control operations, its rugged design and advanced video electronics also make it ideal for general navigation, sonar and mapping operations in airborne, shipboard and ground vehicle installations.
The CF-27SQ-MT features a true square 26.5” diagonal LCD panel with 1920×1920 resolution. This display is currently deployed in US Navy and Marine Corps ATC Stations. The unit comes standard with Analog RGB VGA, Dual-Link DVI, HDMI 1.3 and Display Port inputs. The proprietary LED backlight system features 1000:1 dimming over two ranges with fine adjustment below 2 cd/m2 for NVG compatibility. The power supply accepts 90-260 VAC, 50-400Hz power. A 6-point Multi-Touch Optical touchscreen is standard.
• Advance IPS LCD panel with 1920×1920 resolution and 180 deg. viewing cone
• Extensive Picture-in-Picture adjustments
• External RS232 Control
• Stereo Audio with internal amplifier
• AC, 28VDC and Dual AC-DC power supply options
• 100mm VESA pattern for flexible mounting
• Mil certification available
• Panel Mount configuration available
• Military configurations and certification available
• Deployed in US Navy and Marine Corps ATC Stations
