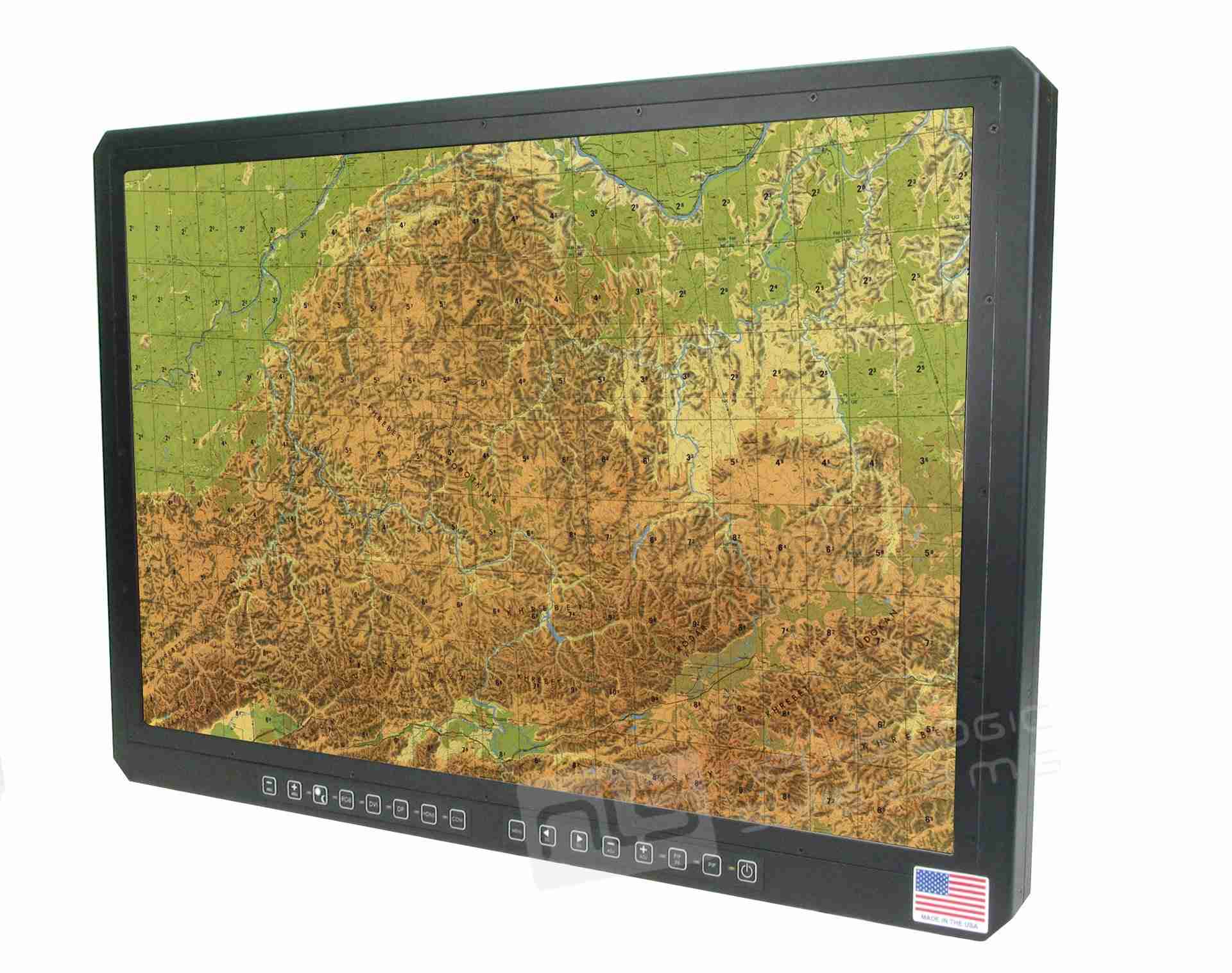

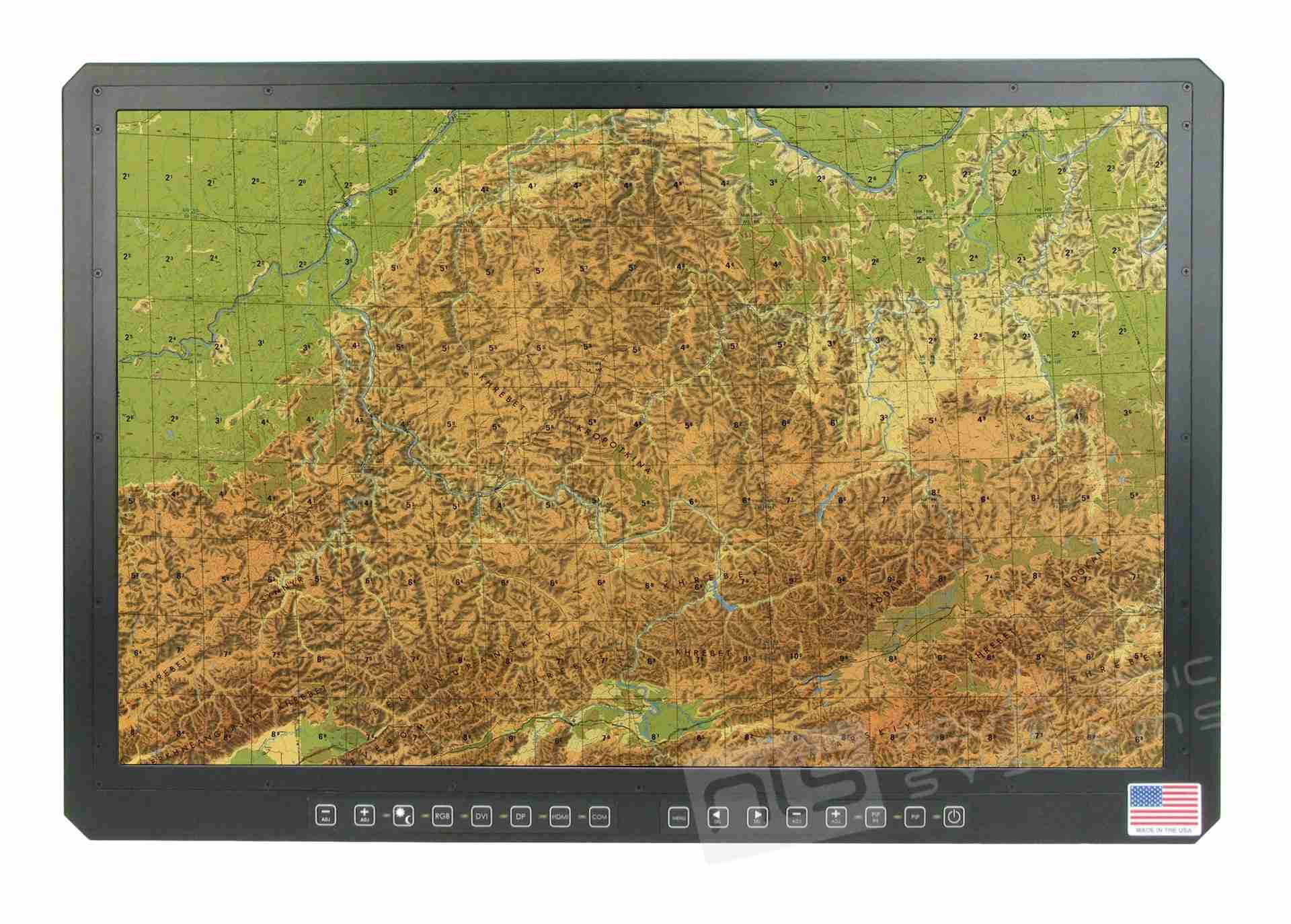

30” 2560×1600 MIL-Certified Shelter Display
The CF-30 was designed for operation in benign environments where an expensive, mil-hardened display is not required. Housed in a lightweight aluminum enclosure the CF-30 will withstand mild shock and vibration and has been certified to MIL-STD-461 making it ideal for UAS ground control, C4ISR, Situational Awareness and similar sheltered military applications. The 30” LCD with 2560×1600 pixel resolution has 10-bit color depth yielding over 1 Billion colors. Support for HDMI 1.4, Dual-Link DVI, Display Port 1.2 and ARGB VGA video input is standard. The 16 button front control panel offers quick access to key video operations and adjustments. The buttons are also backlit for good legibility under low light and dark conditions. Loss of power is always a factor jeopardizing mission operation. To combat power loss, the CF-30 incorporates a dual, auto-switching AC/DC power supply. If normal AC power is disrupted, the CF-30 instantly switches to DC/battery backup power with no operational discontinuity.

• 2560×1600 WQXGA resolution with 10-bit color depth
• HDMI 1.4, Dual-Link DVI, Display Port 1.2 and VGA standard
• Composite and 3G HD-SDI video support available
• Certified to MIL-STD-461
• Auto-switching Dual AC/DC Power supply
• Rear VESA pattern for mounting flexibility
