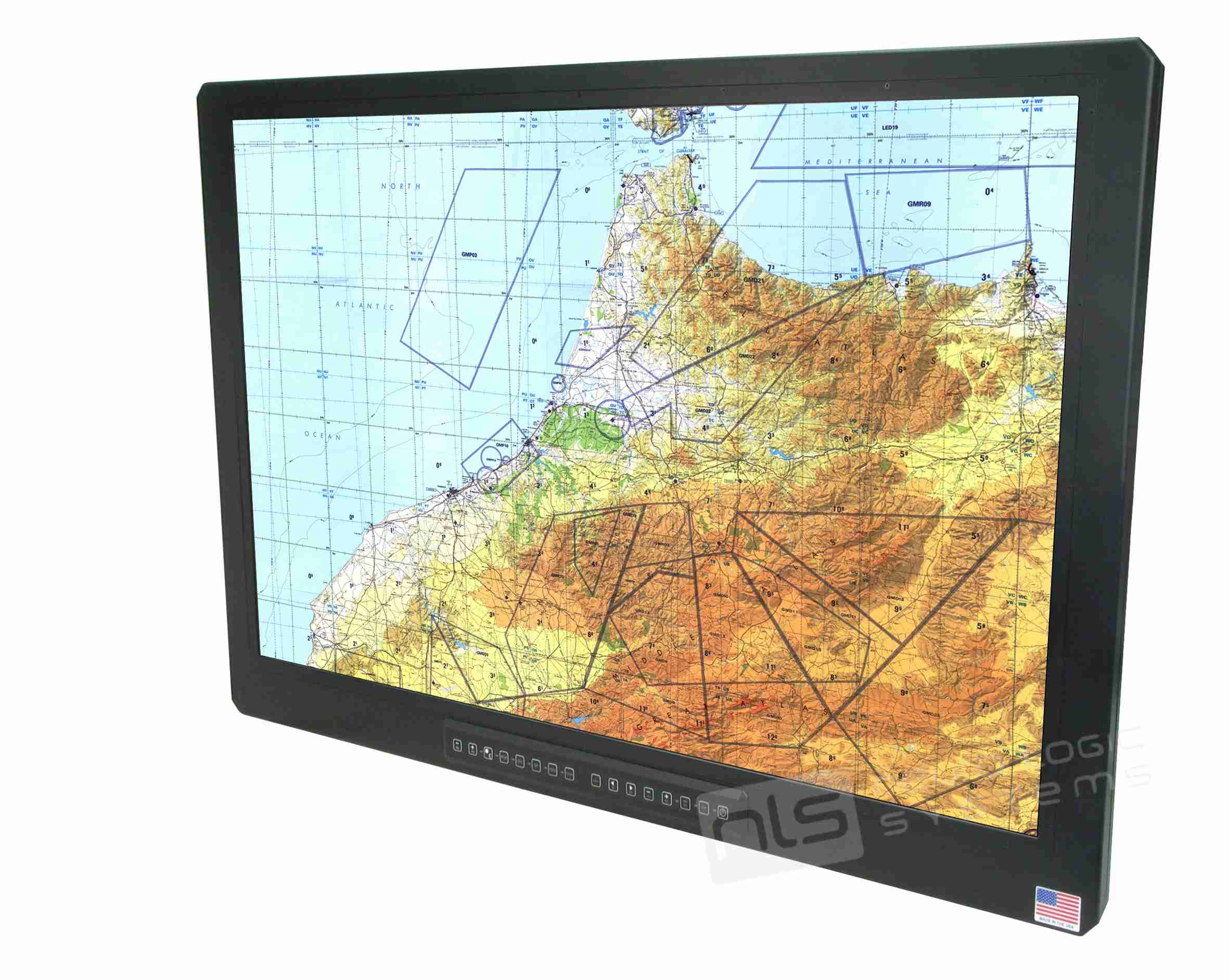

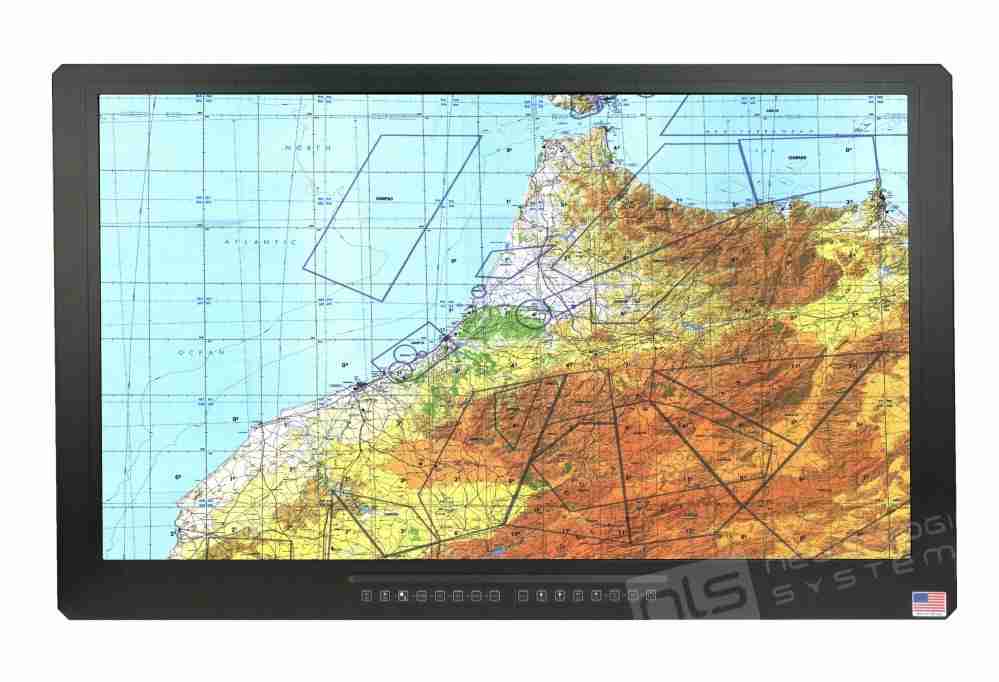

CF-49

49” MIL-Certified 1920×1080 FHD Display for Shelter Applications
The CF-49 was designed for military applications in benign environments. The lightweight aluminum enclosure will withstand mild shock and vibration and offers substantial cost savings when a much more expensive, fully hardened display is not required.

The 49” LCD with 1920×1080 FHD pixel resolution has 10-bit color depth providing 1 Billion colors. The CF-49 supports HDMI 1.4, Dual-Link DVI, Display Port 1.2 and VGA video inputs standard. The 16 button front panel control array provides instant access to key display operations and is backlit for legibility in low light conditions.

The CF-49 features a dual, auto-switching AC/DC power supply useful for battery backup to ensure power stability in hostile environments where loss of normal AC power can be a factor. The CF-49 has been certified to MIL-STD-461 making it ideal for UAS ground control, C4ISR, Situational Awareness and similar shelter-based military applications.

• 1920×1080 FHD pixel resolution with 10-bit color depth
• HDMI 1.4, Dual-Link DVI, Display Port and VGA Inputs
• Certified to MIL-STD-461
• Dual, Auto-Switching AC/DC Power supply
• Rear VESA pattern for mounting flexibility
