NLS mRAK™ LCD displays
CERTIFIED HMI MILITARY & INDUSTRIAL CUSTOMIZABLE TOUCHSCREENS
Get what YOU need. We make it easy. Here’s how.
Need a display to fit your dimensions?
We can modify our COTS products to fit your existing console, rack or mounting system.
Need to update your old display?
We can also modify our COTS products to combine new technology and features with the salient features of your current system.
3 Easy Steps:
1. Check out our large variety of Standard Options or skip to step 2.
2. Call our very experienced Sales Team and tell us what you need.
805-389-5435 x218
3. We will show you how to assemble the features you want in the package size you require.
10-Inch Mini/Half-Rack Deployment
FEATURES
NLS mRAK™ LCD displays, pull-out keyboards and signal processors are designed for deployment in compact, easily transportable 10-inch Mini/Half-Rack enclosures and transit cases. Rugged mRAK™ units are fully compliant to Military environmental and EMC standards and provide the equivalent performance of 19” rackmount units in a space saving format.
RUGGED CONSTRUCTION AND TECHNOLOGY
• Lightweight Aluminum Alloy Construction
• Environmental Gasket and O-Ring Sealing
• Compliant to MIL-STD-810, -167, -901 for Shock and Vibration
• Compliant to MIL-STD-461 and DO-160 for EMC
• Wide Operating Temperature -40oC to +80oC
• D38999 Military Circular Connectors
• MIL-STD-1275 and -704 Compliant Power Supplies

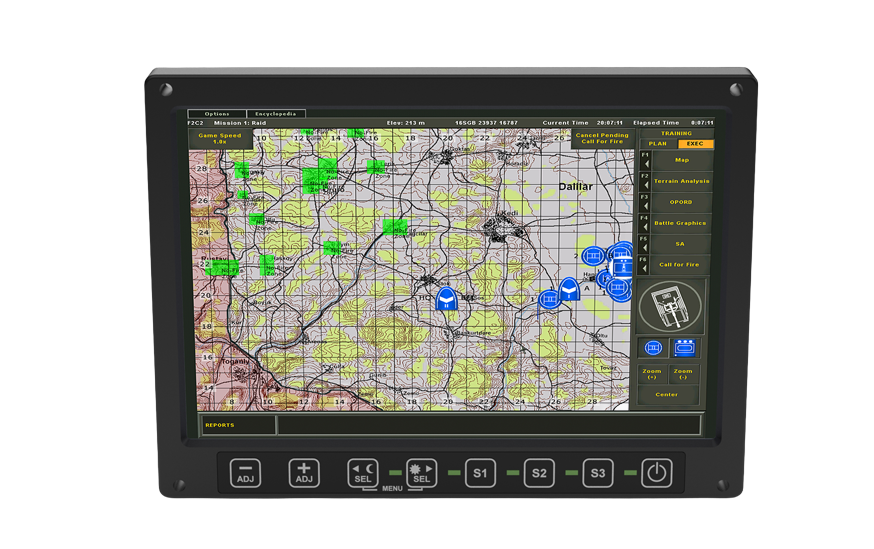

mRAK™ LCD DISPLAYS
• Sizes from 7” to 10.1”
• Pixel Resolutions up to 1920×1200

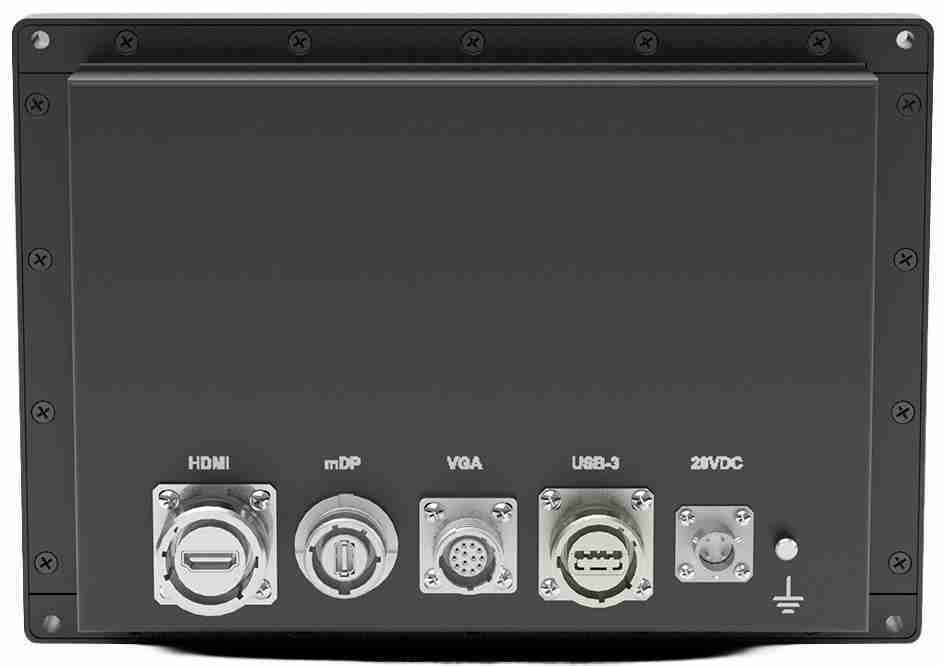

• Analog RGB VGA
• DVI/HDMI, Display Port
• SDI and Composite Video
• DisplayLink
• Fiber Optic
• AC and 28VDC Power Supplies
• PCAP and Glass Armored Resistive Touchscreens
