mRAK™ 10-Inch MINI-RACK
DISPLAYS, KEYBOARDS & SIGNAL PROCESSORS
Maximum Performance in Compact Form Factor
NLS mRAK™ displays, pull-out keyboards, and signal processors are engineered for installation in compact 10-inch Mini-Rack and Half-Rack enclosures, portable transit cases, and other space-constrained military systems.
The mRAK product family delivers the functionality and performance associated with conventional 19-inch rack-mounted equipment in a smaller, lighter, and more easily transportable format. These rugged units are designed for military, aerospace, naval, vehicle-mounted, and mobile-command applications where available space, system weight, and deployment speed are critical. Learn more about our rugged military systems.
Rugged Military-Grade Construction And Technology
mRAK units are built for dependable operation in demanding environments. Available construction and compliance features include:
- Lightweight aluminum-alloy construction
- Environmental gasket and O-ring sealing
- MIL-STD-810 compliance for environmental performance
- MIL-STD-167 compliance for shipboard vibration
- MIL-S-901 / MIL-DTL-901 compliance for high-impact shock
- MIL-STD-461 and DO-160 electromagnetic compatibility
- Wide operating temperature range: -40°C to +80°C
- D38999 military circular connectors
- MIL-STD-1275-compatible vehicle power
- MIL-STD-704-compatible aircraft power
- AC and 28 VDC power-supply configurations
Final compliance and operating specifications vary by model and configuration. See also our military standards options overview.

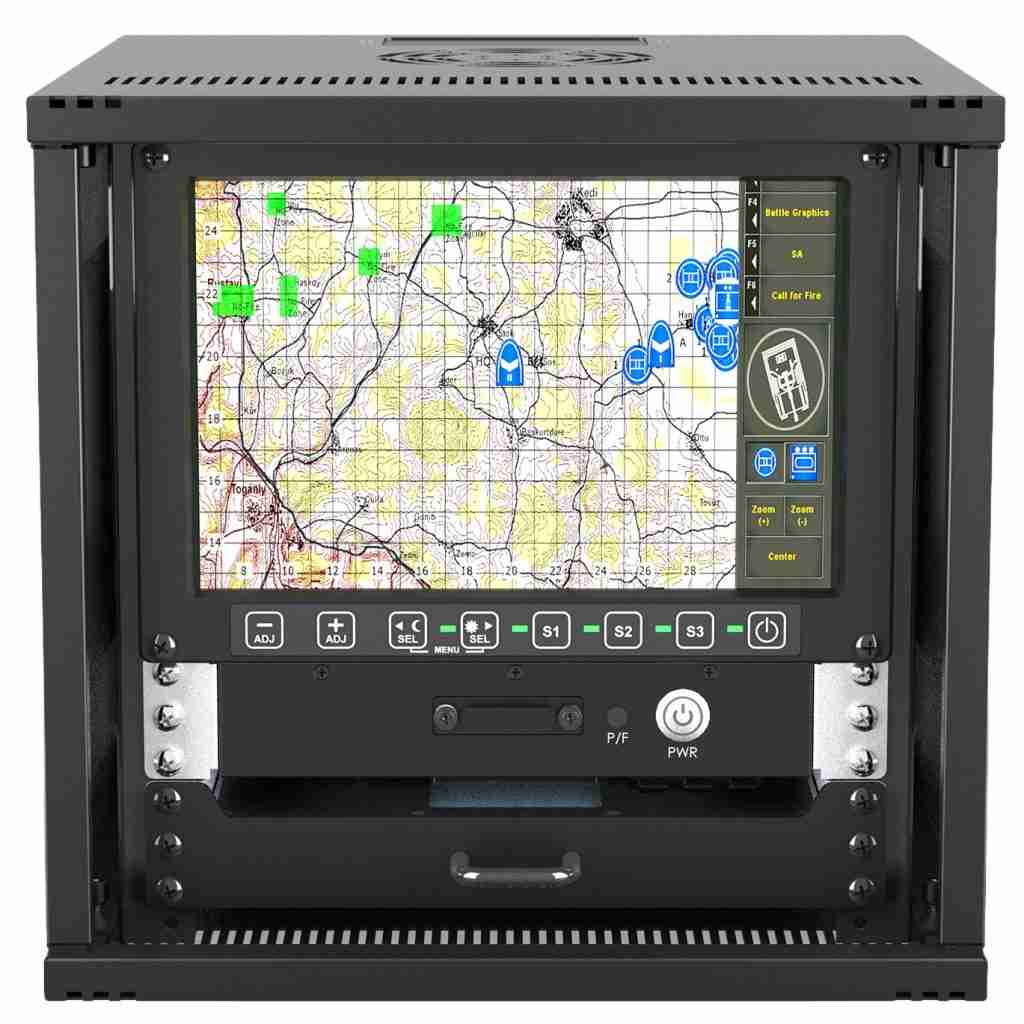

mRM-10.1W-28 RUGGED 10.1” WUXGA DISPLAY
Display configurations can be tailored to meet specific military platform, signal-input, environmental, and operator-interface requirements. Explore related solutions on our rugged LCD displays page.

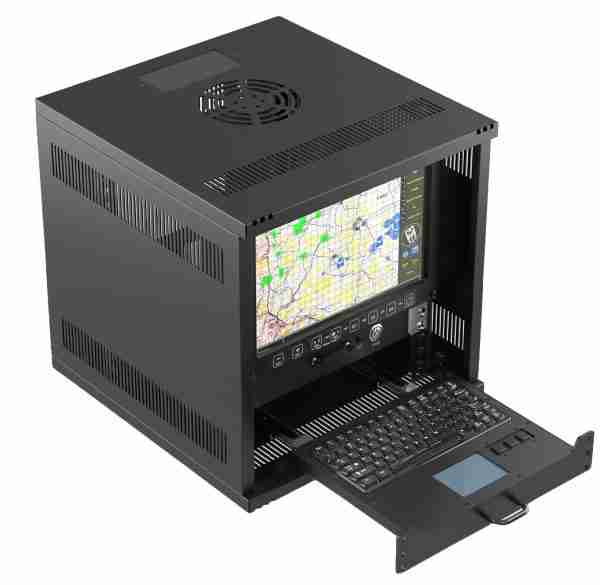

mRAK™ LCD Displays
NLS mRAK LCD displays provide high-resolution video performance in compact rack-mount configurations designed for 10-inch enclosures.
Available display capabilities include:
- Screen sizes from 7 inches to 10.1 inches
- Resolutions up to 1920 × 1200
- Analog RGB and VGA inputs
- DVI and HDMI interfaces
- DisplayPort support
- SDI video input
- Composite video compatibility
- DisplayLink support
- Fiber-optic video interfaces
- AC and 28 VDC power options
- Projected-capacitive touchscreens
- Glass-armored resistive touchscreens
mRAK™ Pull-Out Keyboards
mRAK pull-out keyboards provide an integrated operator-control solution for portable racks, transit cases, and space-constrained military installations.
Keyboard configurations may include military-grade construction, sealed controls, backlit keys, integrated pointing devices, and application-specific interfaces.
Learn more about our rugged keyboard systems.

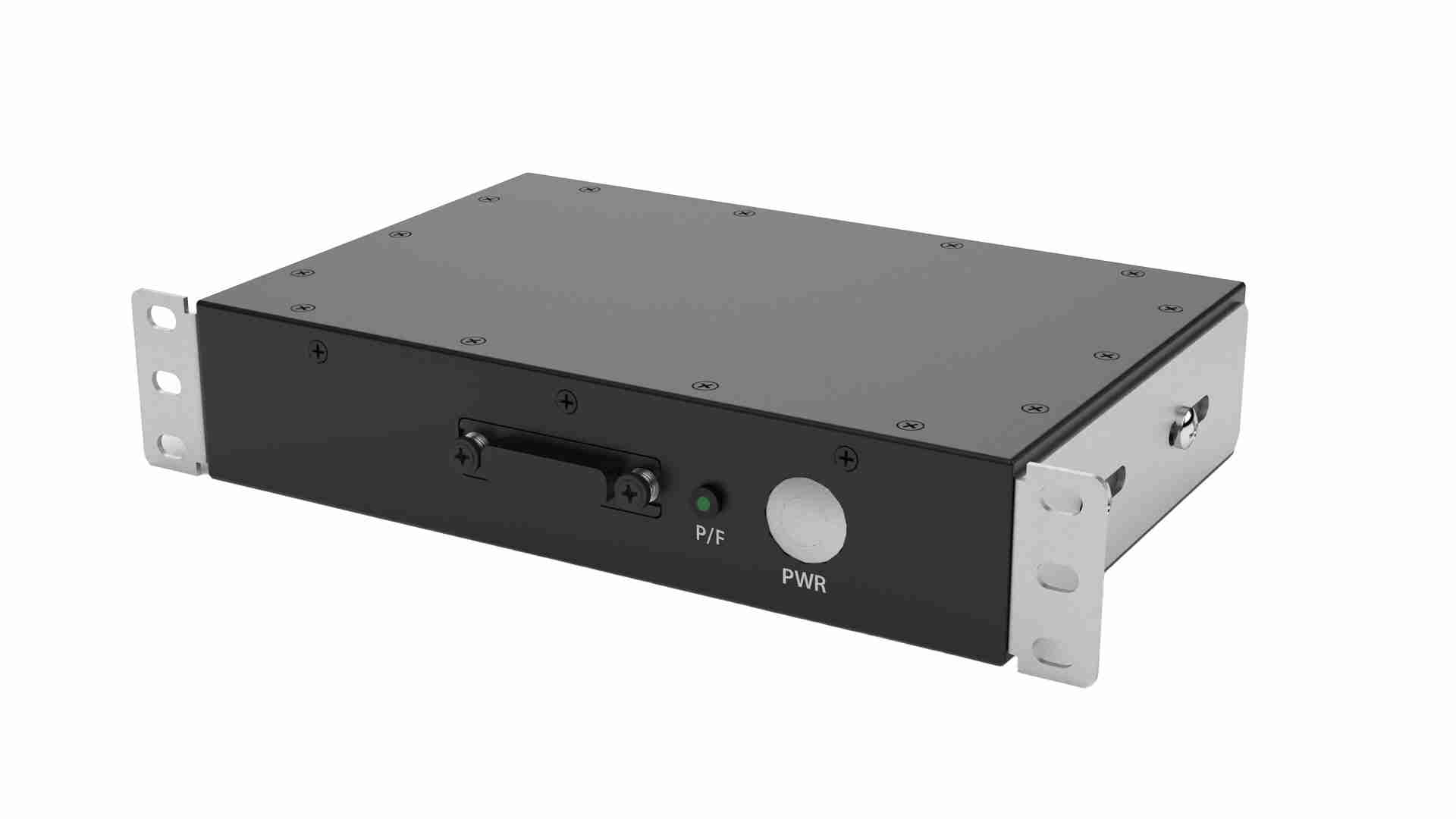

mRAK™ Signal Processors
mRAK signal processors deliver video conversion, routing, and interface-management capabilities within the same compact 10-inch rack format.
These units support mission-specific signal requirements while significantly reducing the space and weight associated with conventional 19-inch processing equipment.
Learn more about our signal processing solutions for more details.
Configure The Display You Need!
Configured for Your Deployment
NLS can configure mRAK products around required display size, signal format, touchscreen technology, power input, connector type, environmental standard, and installation method.
Contact NLS Displays to discuss a custom mRAK configuration for your military, aerospace, naval, vehicle-mounted, or portable deployment system.
