mRAK™ KEYBOARDS

Two proprietary military-grade keyboards are available in the mRAK™ product line.

shadow

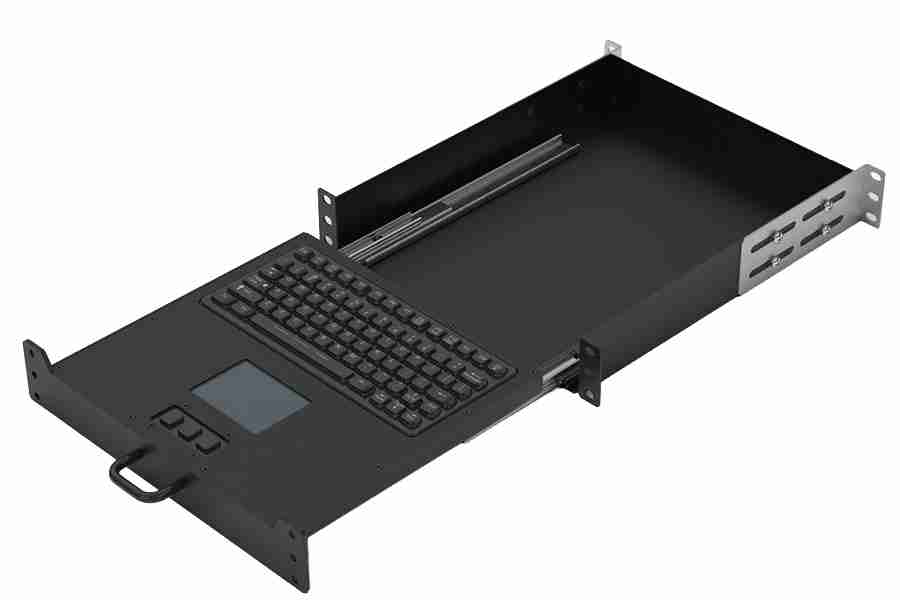

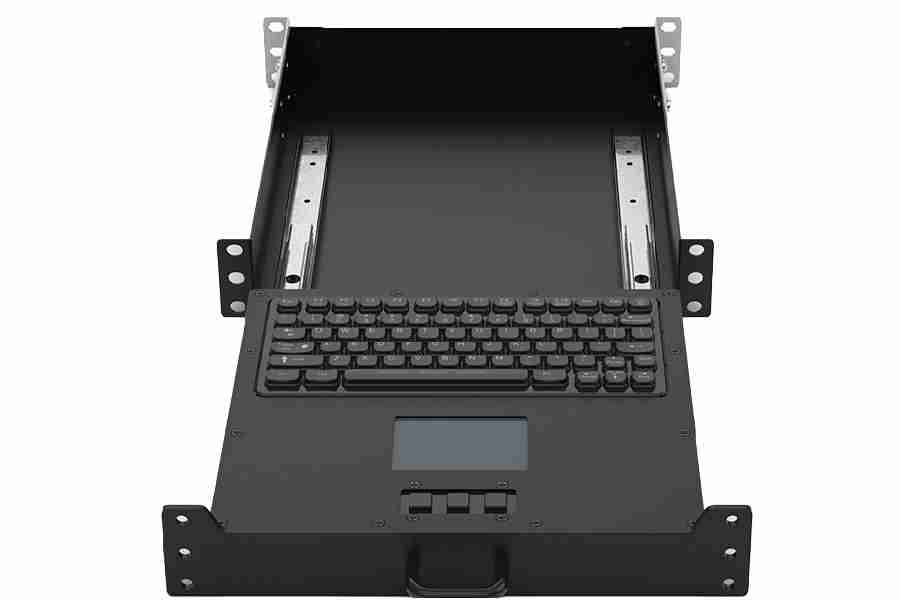

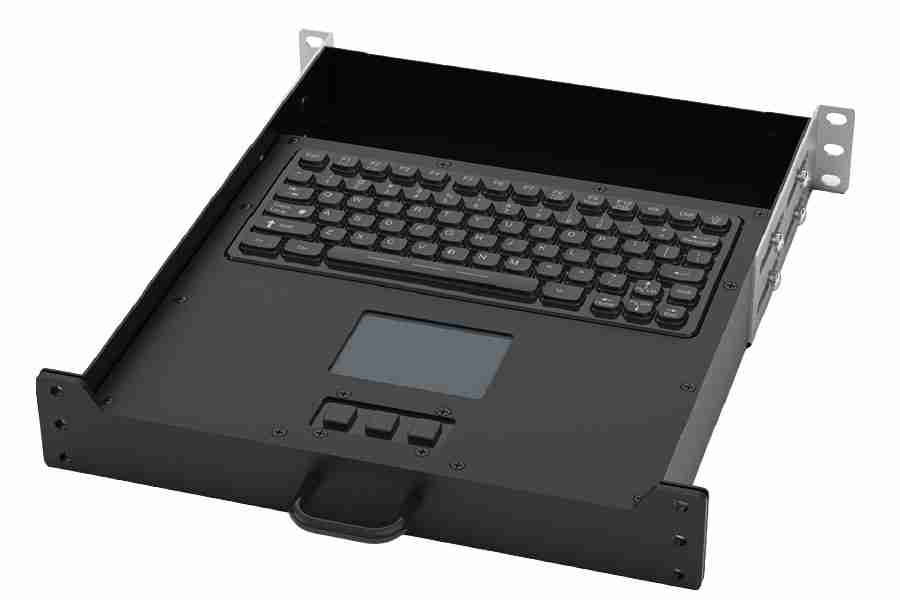

MRKB-1

Specifically designed for installation and deployment in 10-inch Mini-Rack housings, the MRKB-1 features a compact, environmentally protected 75-key backlit keyboard and 3-button trackpad housed in a 1U rackslide pull-out chassis. The MRKB-1 is resistant to dripping water, blowing sand, and 100% humidity, with a -40 °C to +80 °C operating temperature range. The output can be ordered as a single or Dual USB with 4-pin D38999 connectors. The MRKB-1 is Windows and Unix compatible.

MRKB-1 75 key backlit keyboard
MRKB-1 75 key backlit keyboard
MRKB-1 75 key backlit keyboard

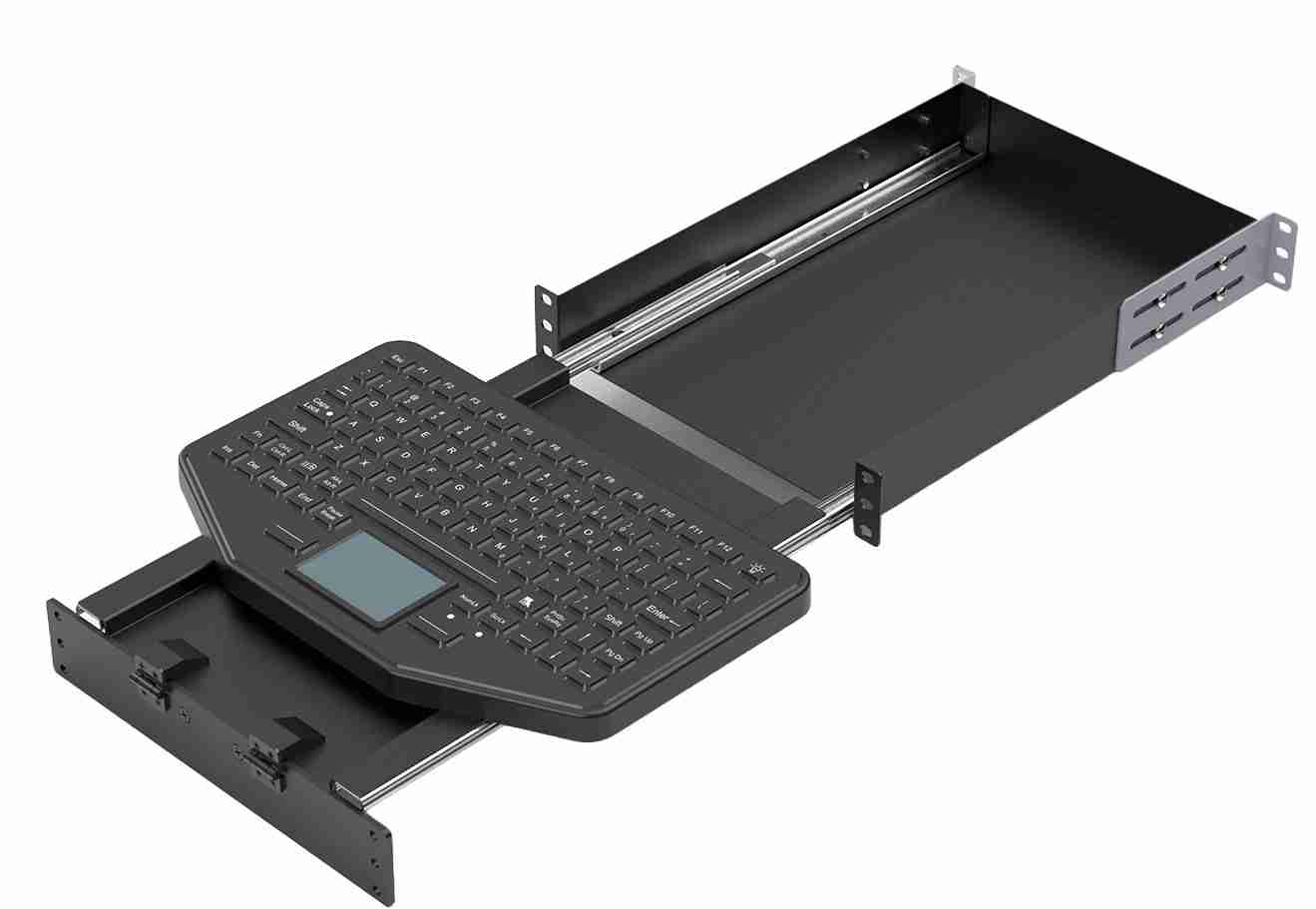

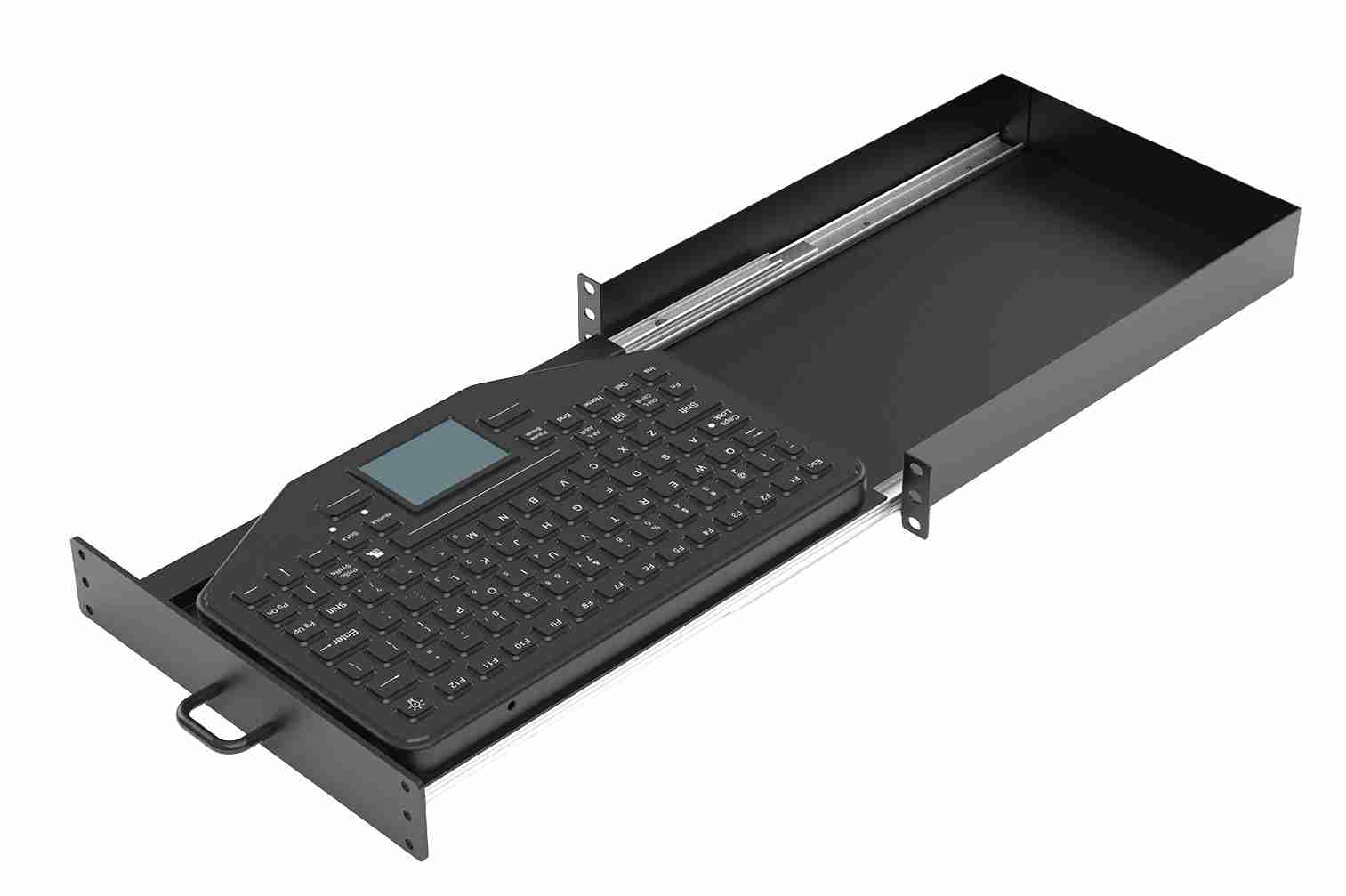

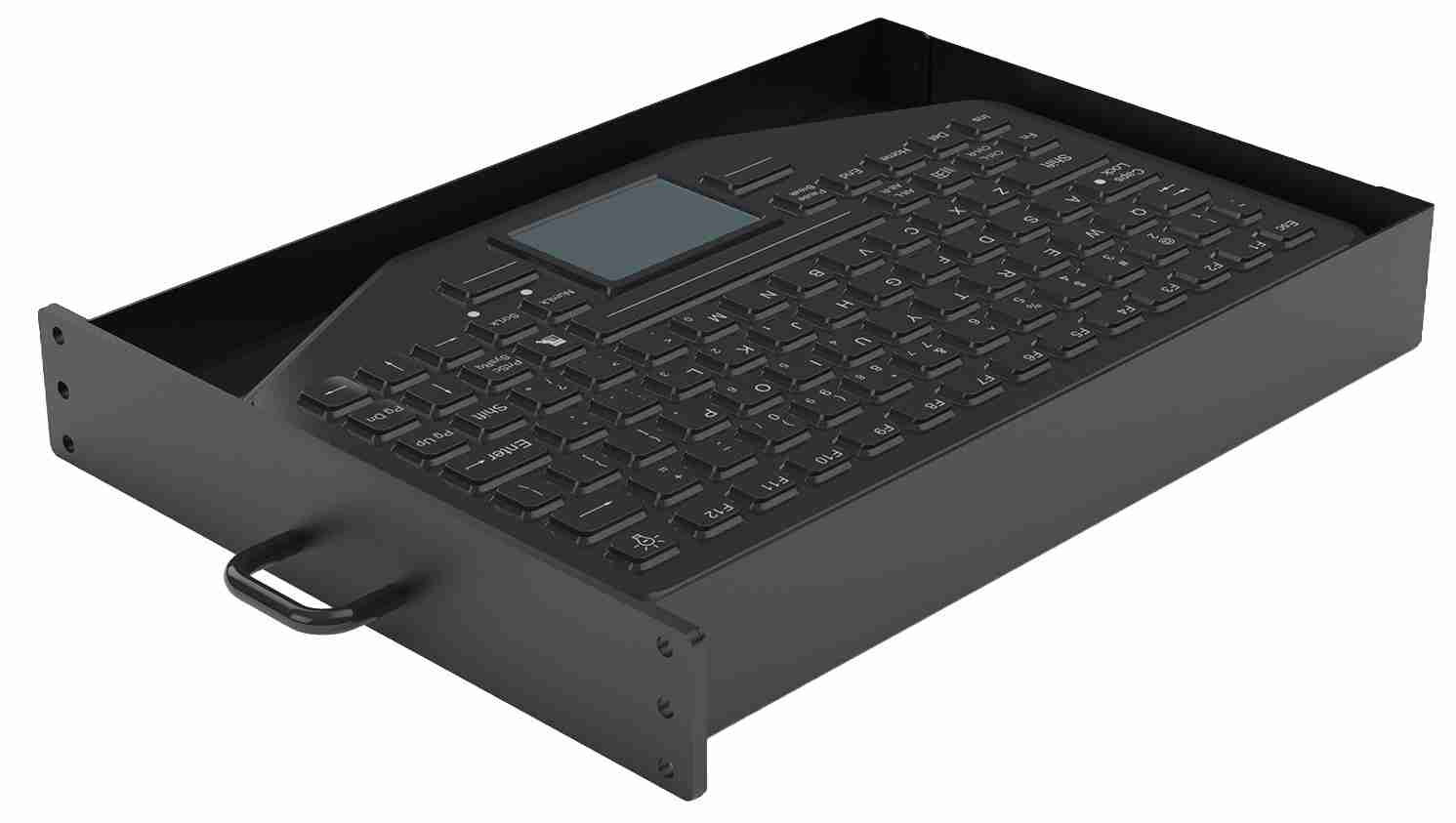

MRKB-2

The MRKB-2 features a NEMA 4x environmentally sealed 87-key backlit keyboard with a built-in 2-button trackpad, housed in a rackslide pull-out chassis with a proprietary swivel mechanism and a tilt-down front panel for comfortable, ergonomic user access. The military-grade MRKB-2 is resistant to strong water jets, blowing sand, and 100% humidity. It features a wide -40 °C to +80 °C operating temperature. The USB output is via a D38999 MIL Circular connector.

MRKB-2 mRAK™ Pull-Out Keyboards
MRKB-2 mRAK™ Pull-Out Keyboards
MRKB-2 mRAK™ Pull-Out Keyboards
