mRAK™ Widescreen Military Display
Compact, rack‑mount design for easy transport and fast field deployment.

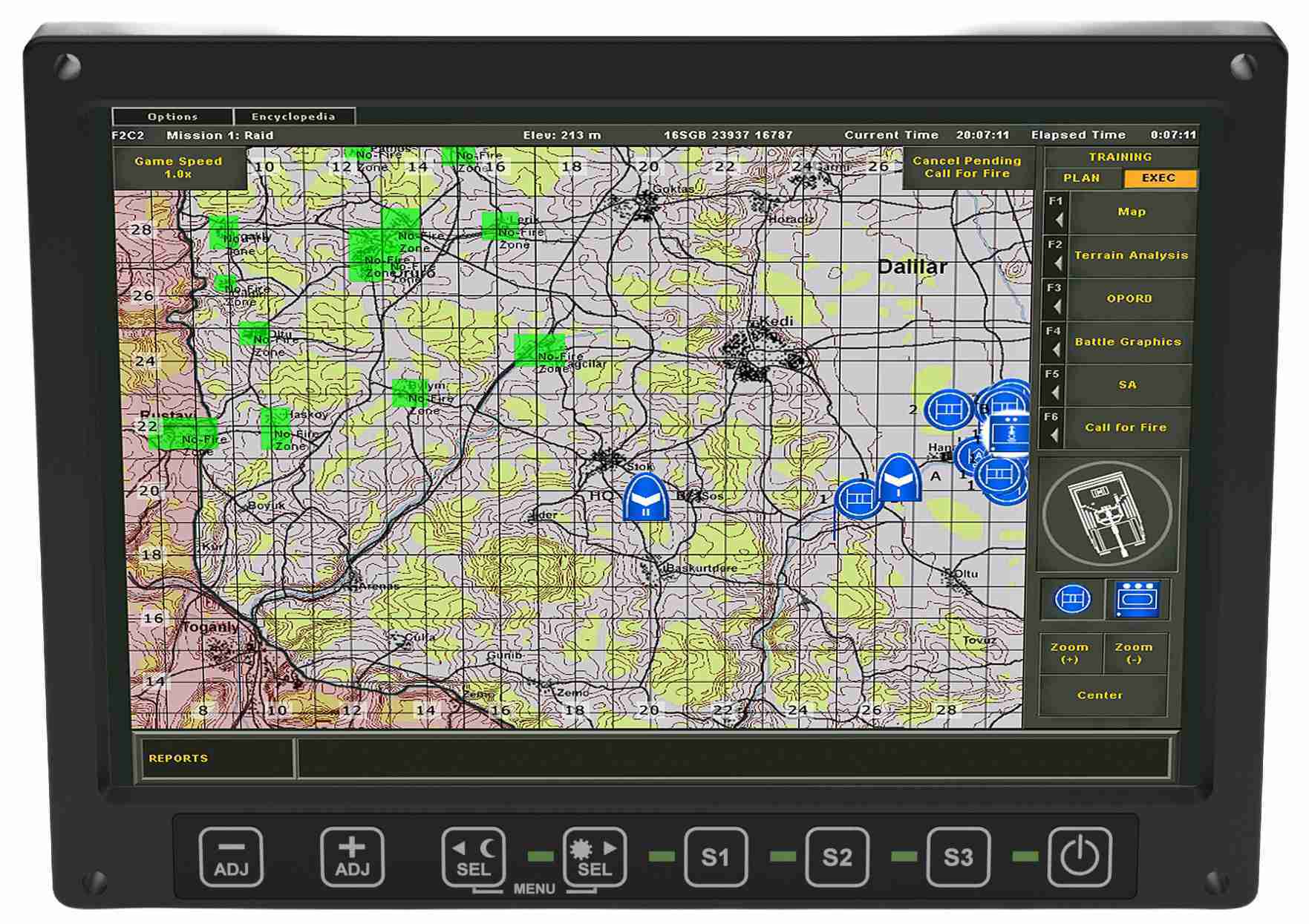

mRM-10.1W-28 RUGGED 10.1” WUXGA DISPLAY
Designed and built to MIL-STD-461, -810, -167, -704, -1275
The mRM-10.1W-28 is derived from the MIL- and Flight -Certified PM-10.1-DVI-28 with the machined aluminum housing slightly modified for installation in 10-inch Mini-Racks. The standard 800cd/m2 luminance of the mRM-10.1W-28, together with the bonded AR/EMI CS glass filter provides high contrast for clear viewing in glaring outdoor sunlight conditions.
A Dual-Mode, High-Brite/NVIS backlight is also available featuring extensive luminance adjustment: from 1300 cd/m2 down to <05 cd/m2 for night time viewing compatible with NVGs. Eight backlit buttons provide video input selection and user control of the extensive OSD menu including PIP.
Video support for DVI-D/HDMI, Display Port and Analog RGB VGA is standard. Support for 3G-SDI, Composite and Displaylink are available options.
Bonded PCAP and Resistive touchscreens are also available. The mRM-10.1W-28 power supply accepts 12V-36V DC and is fully protected against spike and surge transients.
